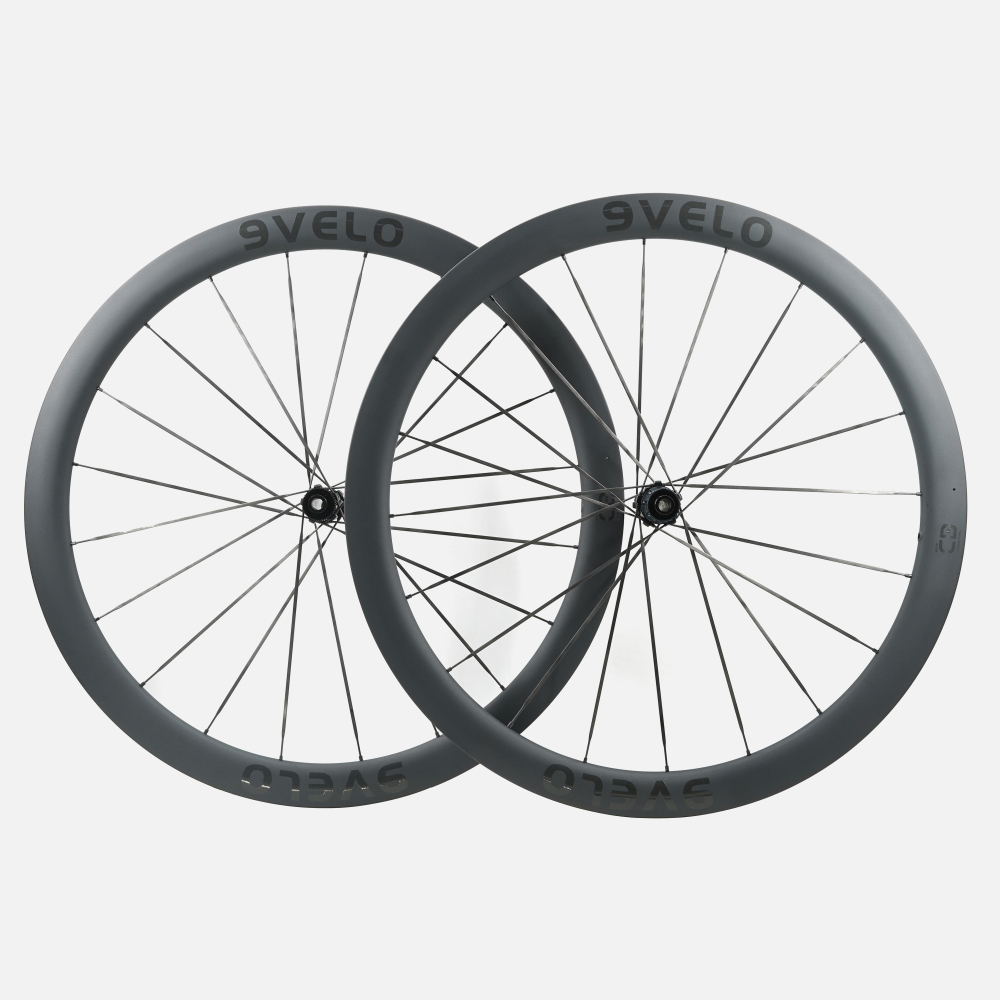

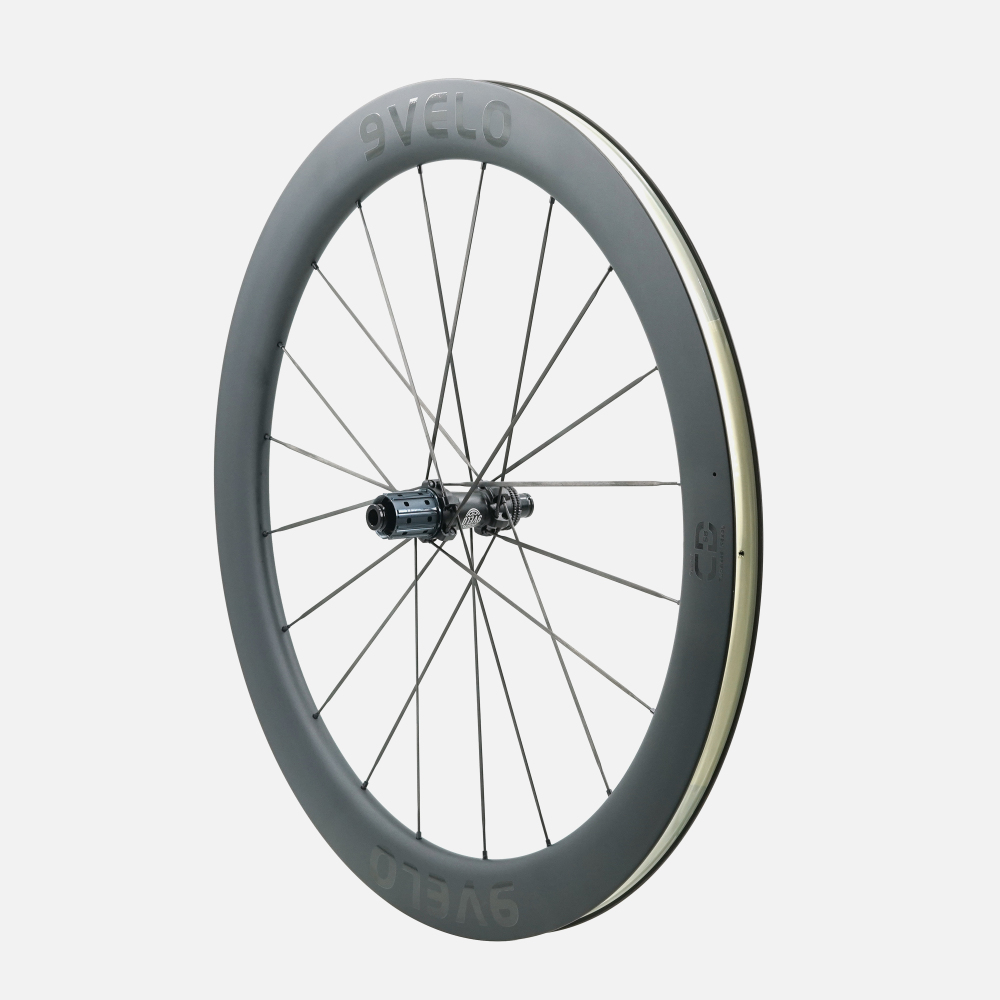

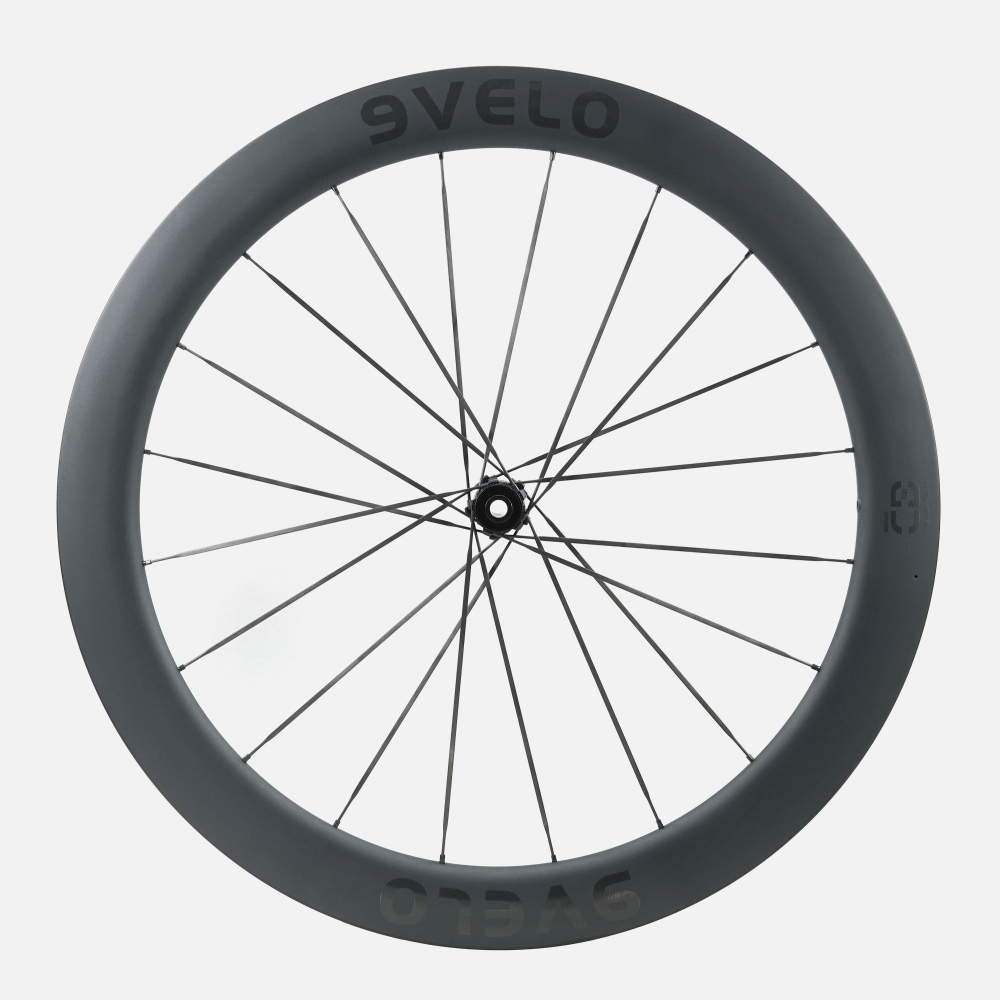

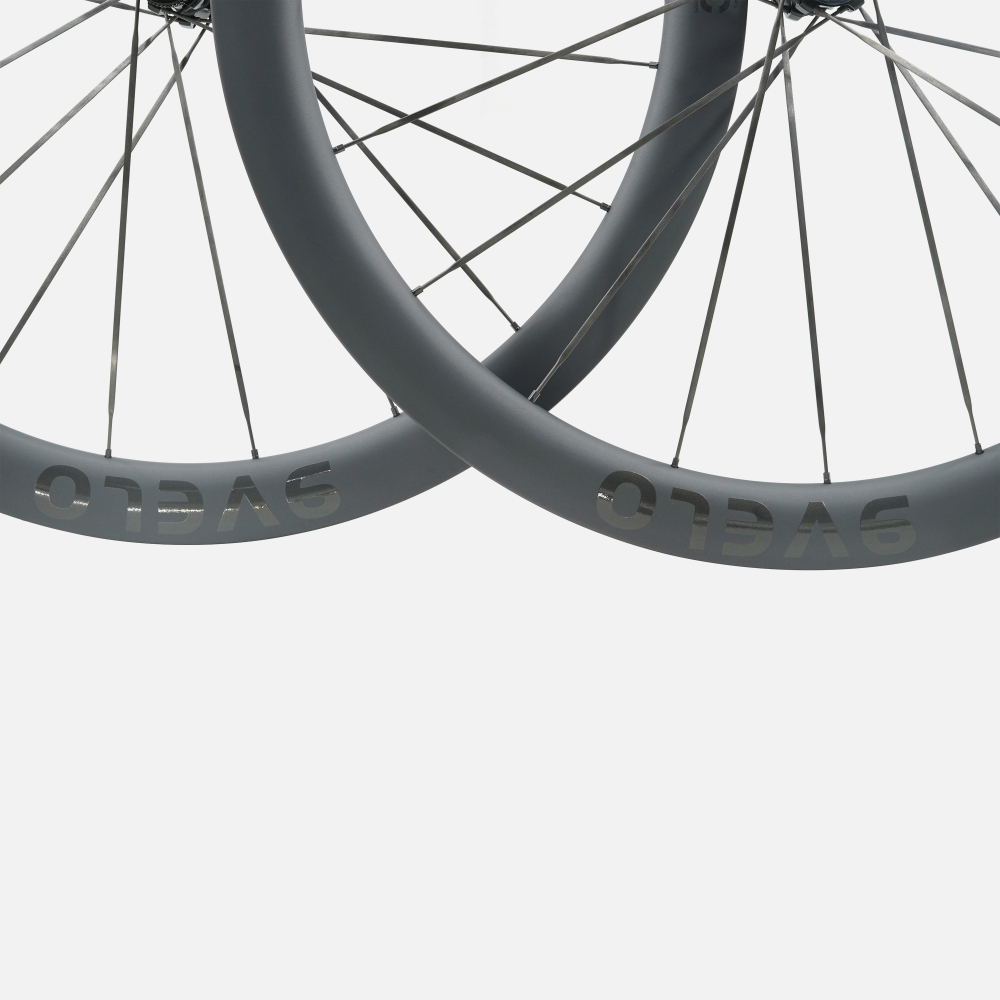

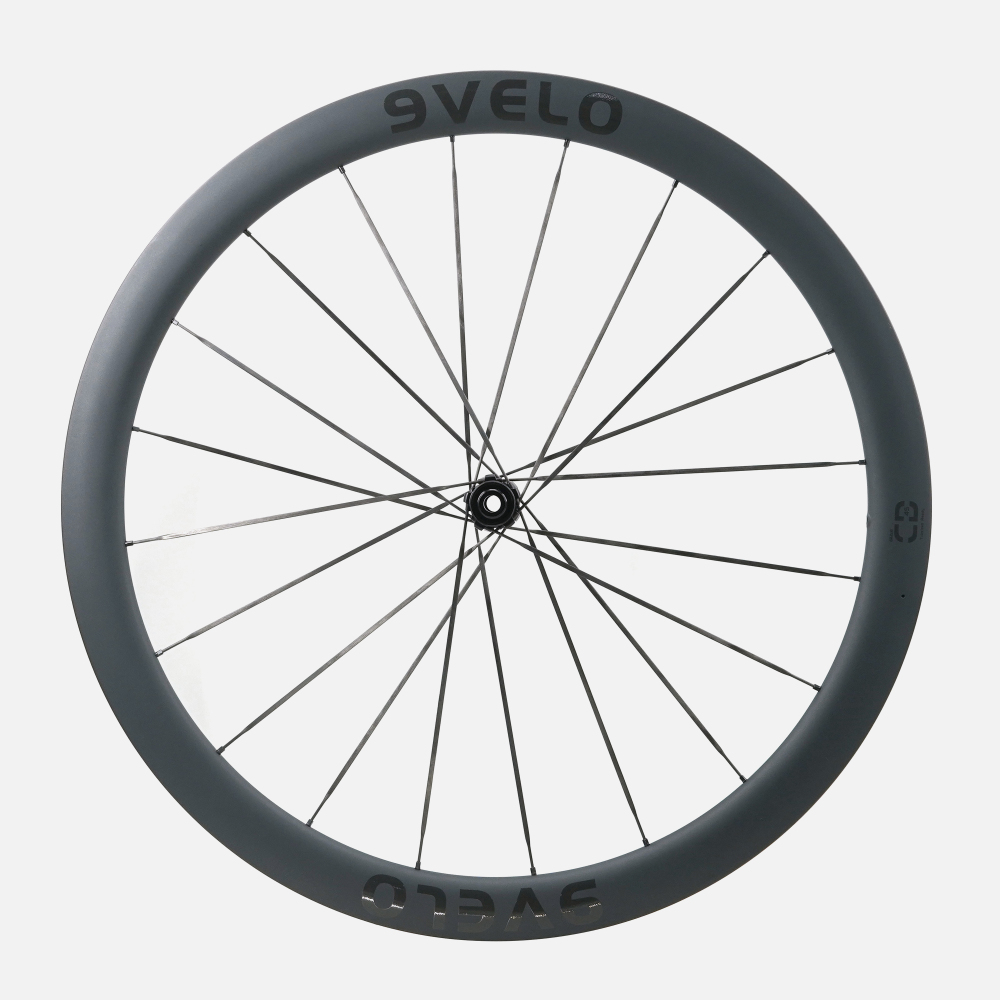

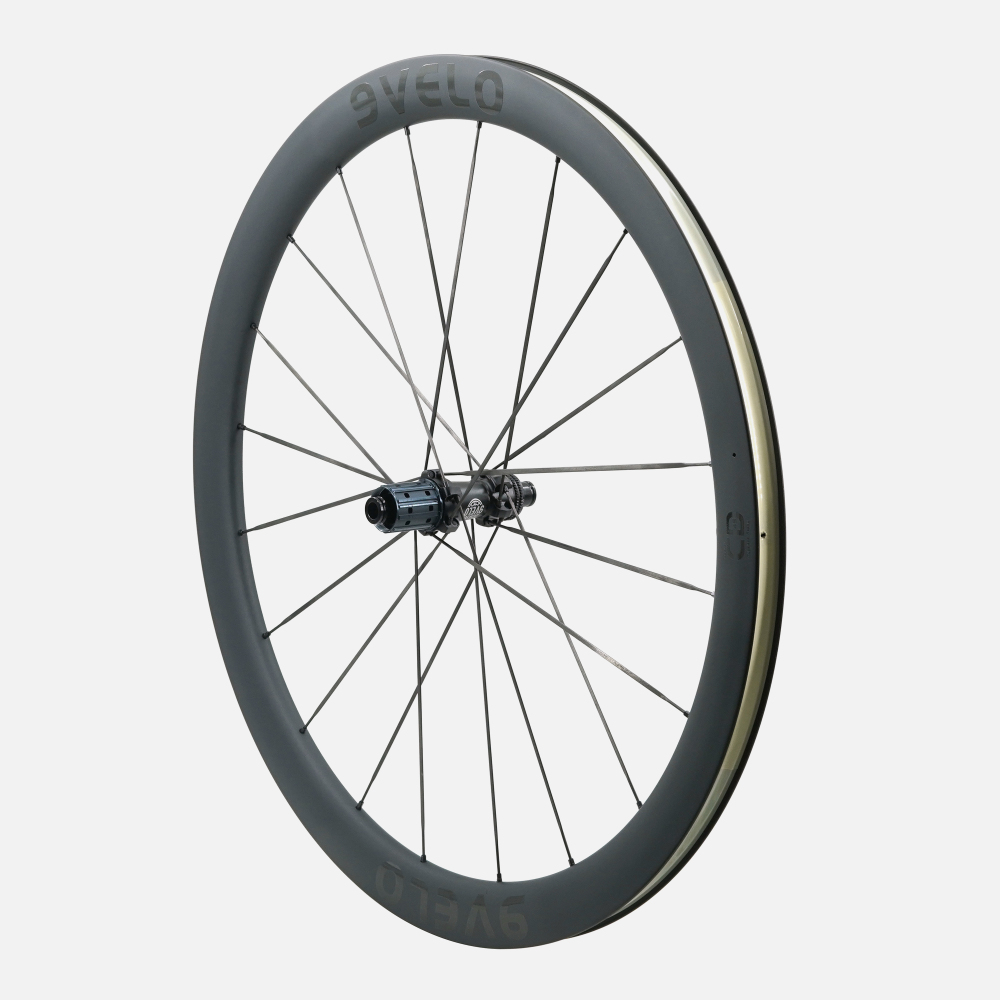

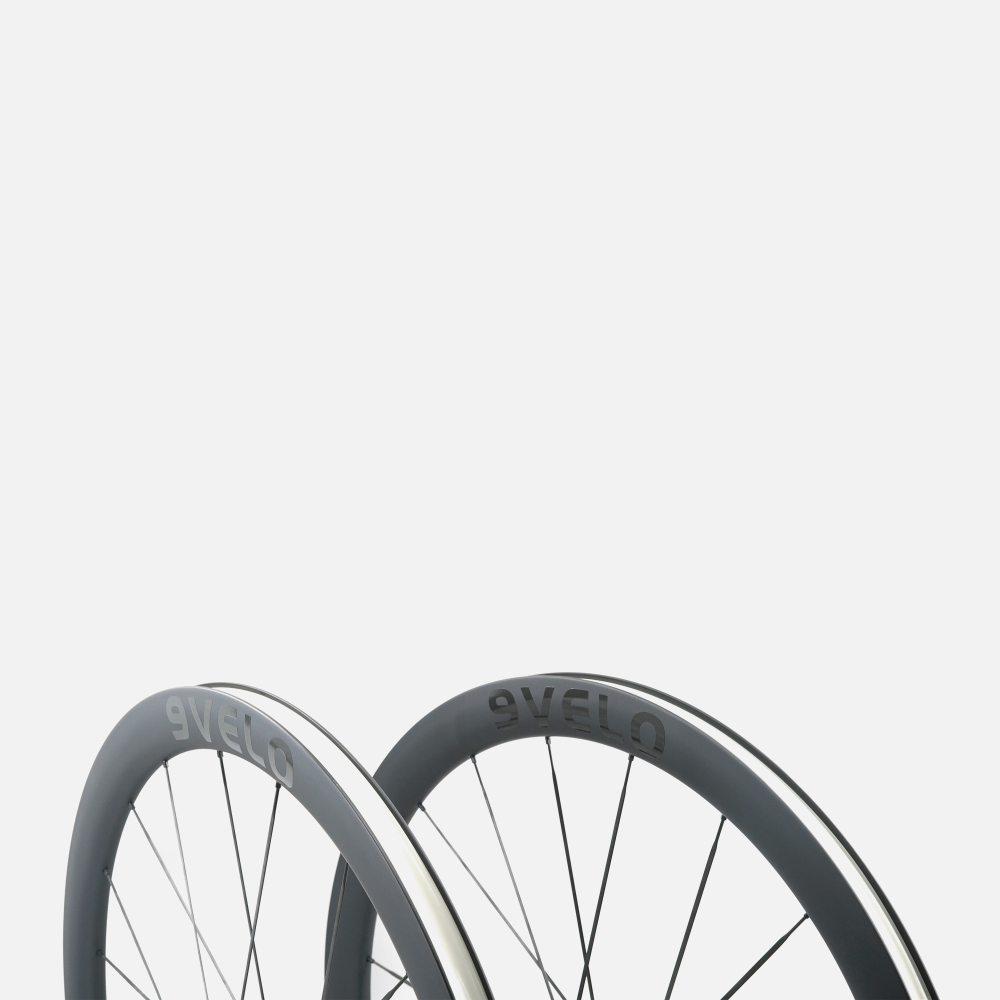

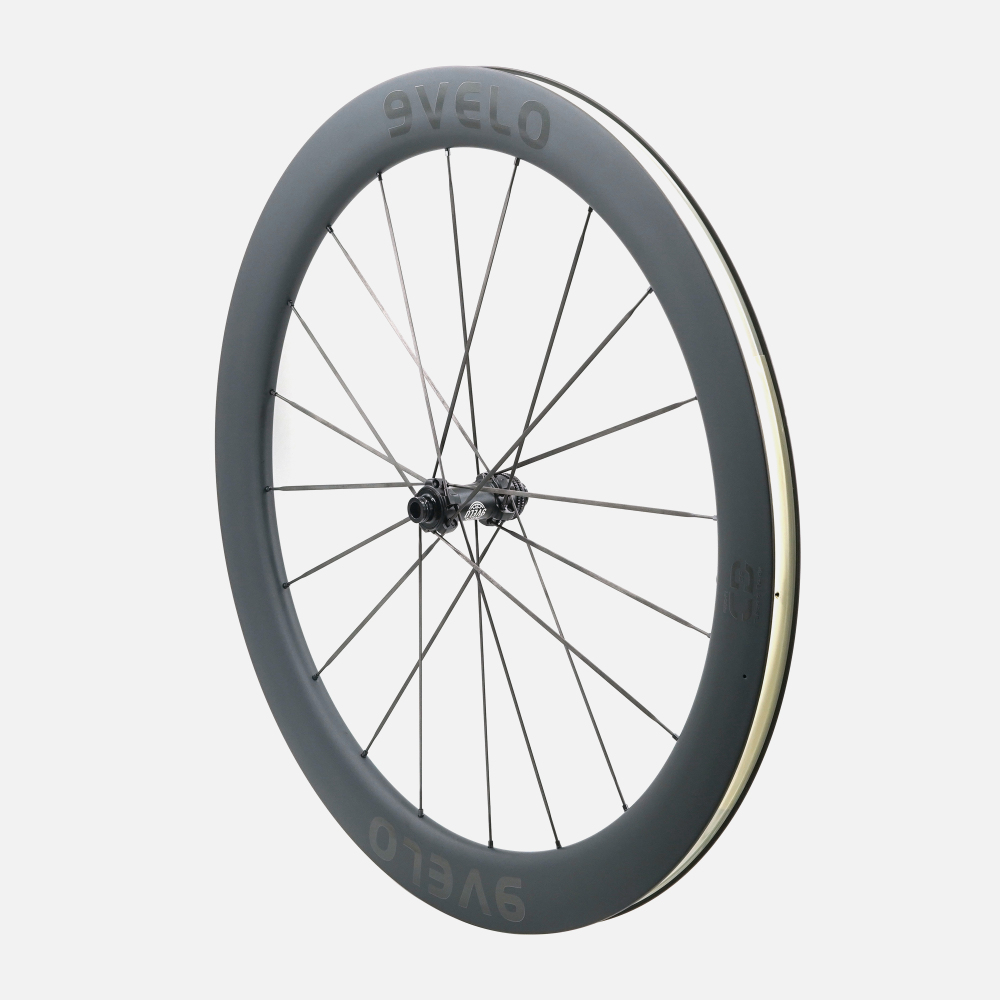

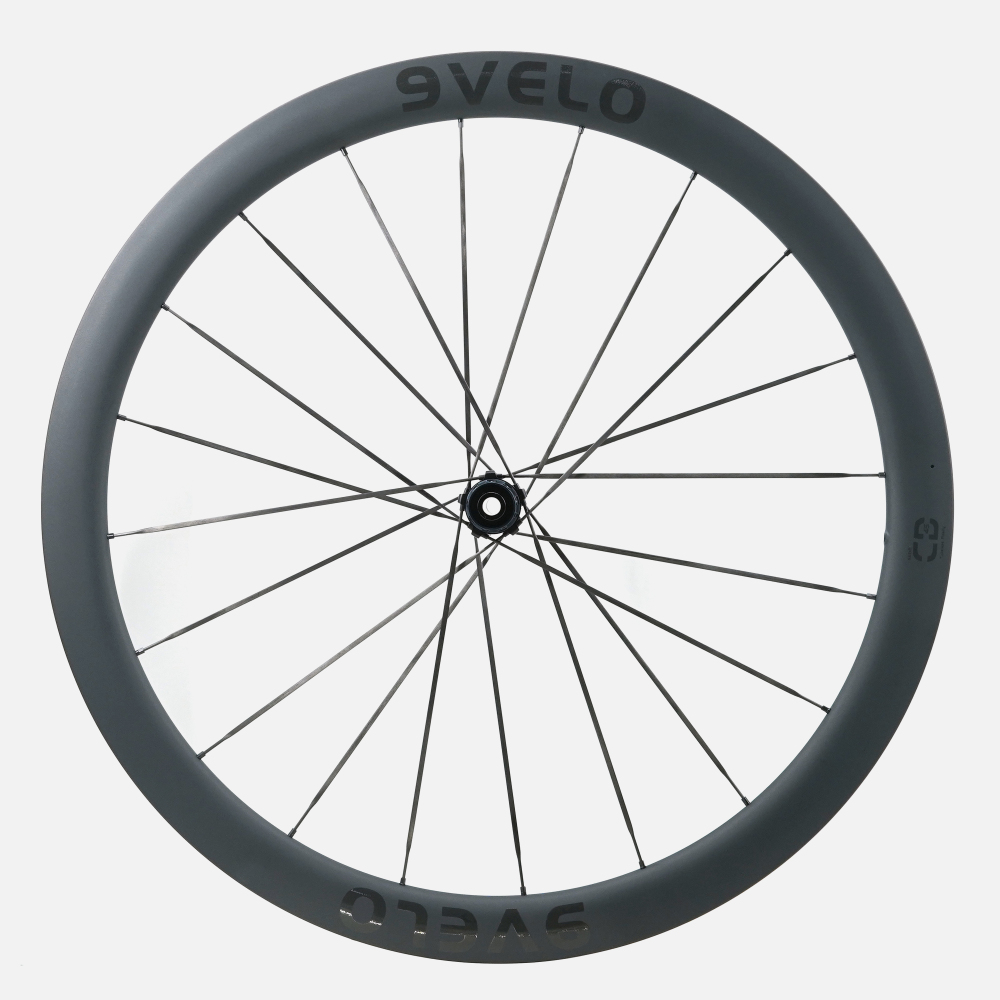

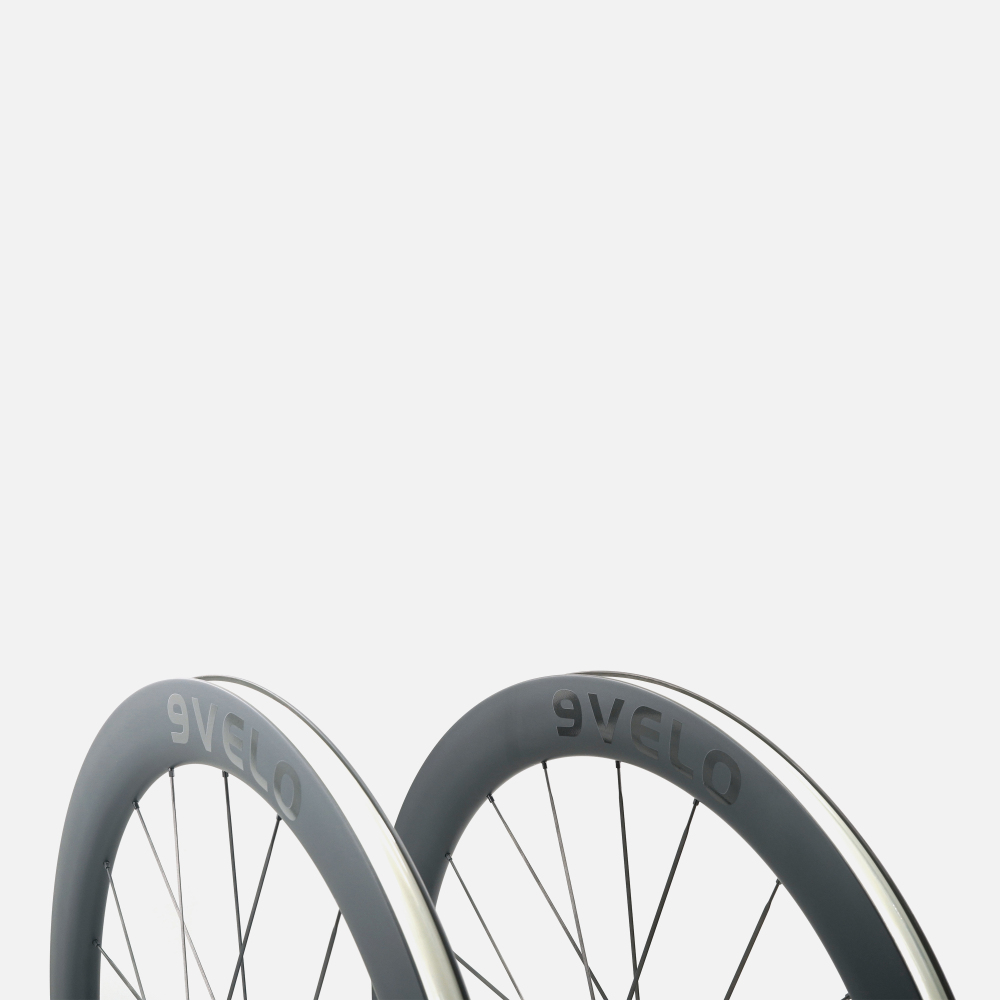

9Velo 2024 Road Disc Carbon Spoke CD 2.0 Series 20H/20H

SKU: CD45 2.0 / Shimano 11/12s Compatible / 36T
"Maximum Performance In Every Detail."

*Notice: 1-2 weeks to process the order before shipping out.
5 (5 Reviews)
$1,259.00 $1,759.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    CD45 2.0
    CD58 2.0
  • Freehub:
    Shimano 11/12s Compatible
    Sram XDR
    Campagnolo 11/12S
    Campagnolo N3W 13S
  • Hub Ratchets:
    36T
    45T
Qty:
-
+
  • Description
  • Maintenance Notes
  • Warranty

FEATURES

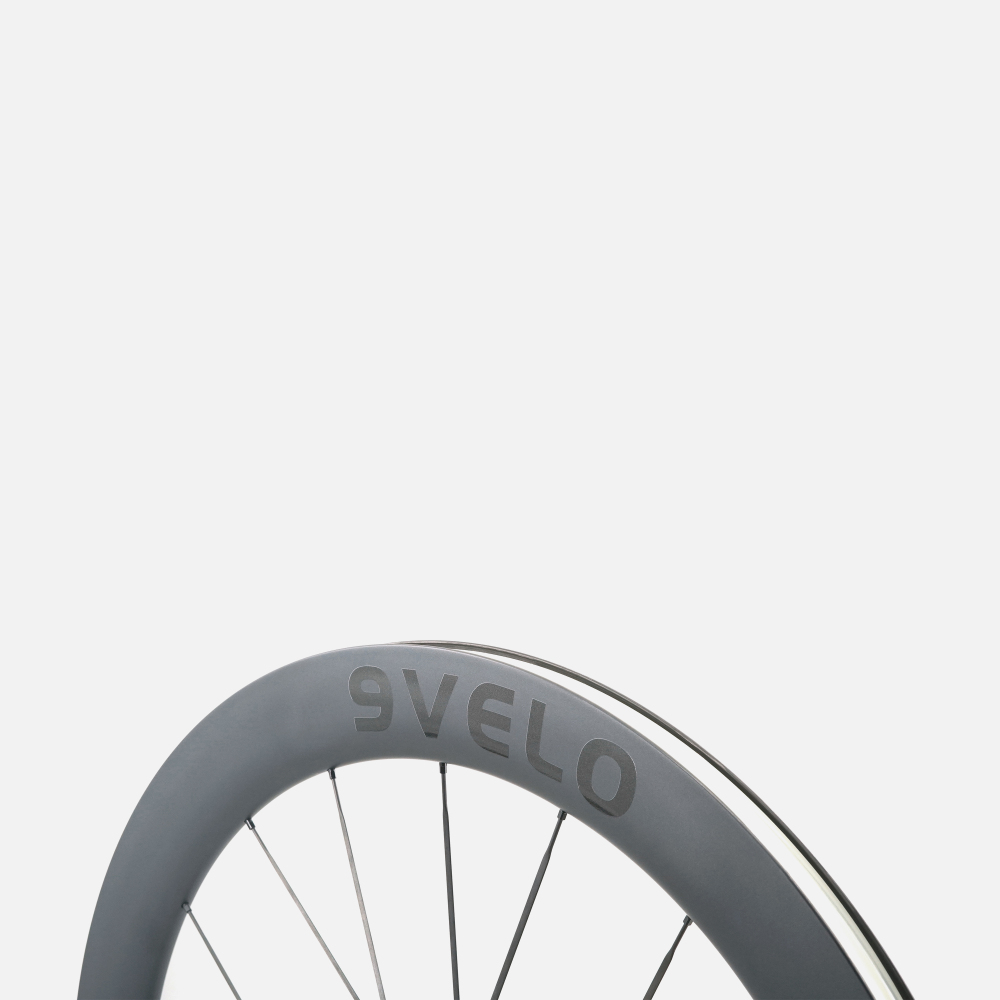

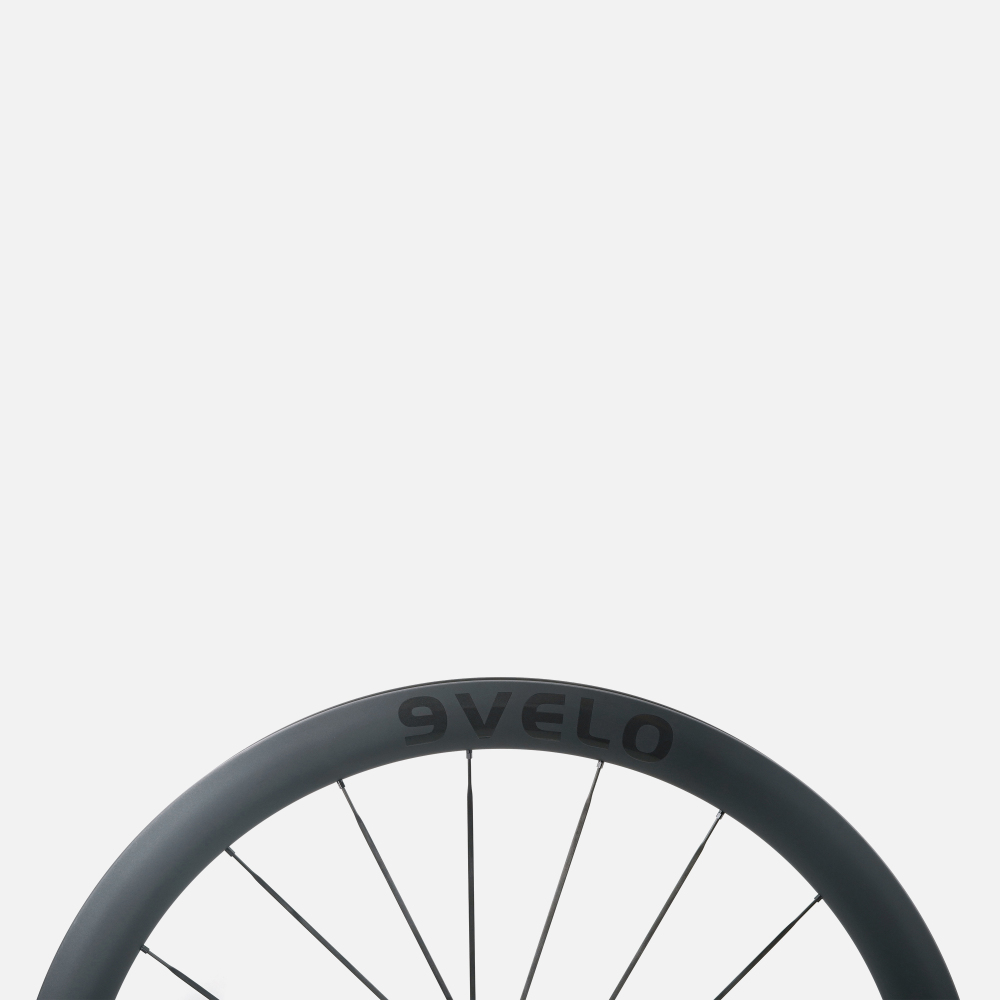

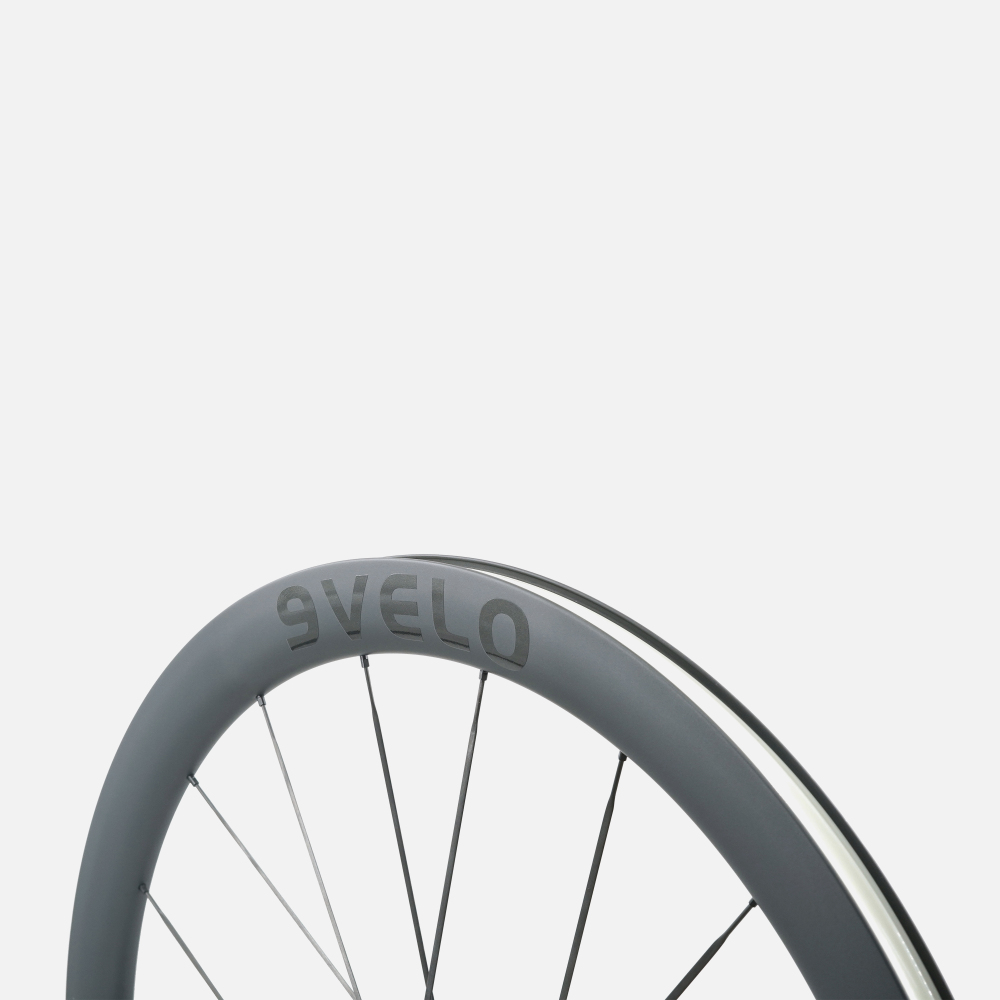

RIM
  • Higer-end carbon layering makes ultralight rim weight, so that you do not need to sacrifice weight for aero benefits. Even a CD58 wheelset with a 58mm rim depth weighs amazingly around 1340g (weight of tubeless tape not included).
  • Tubeless/clincher compatibility offers you border tire choices.
  • The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.

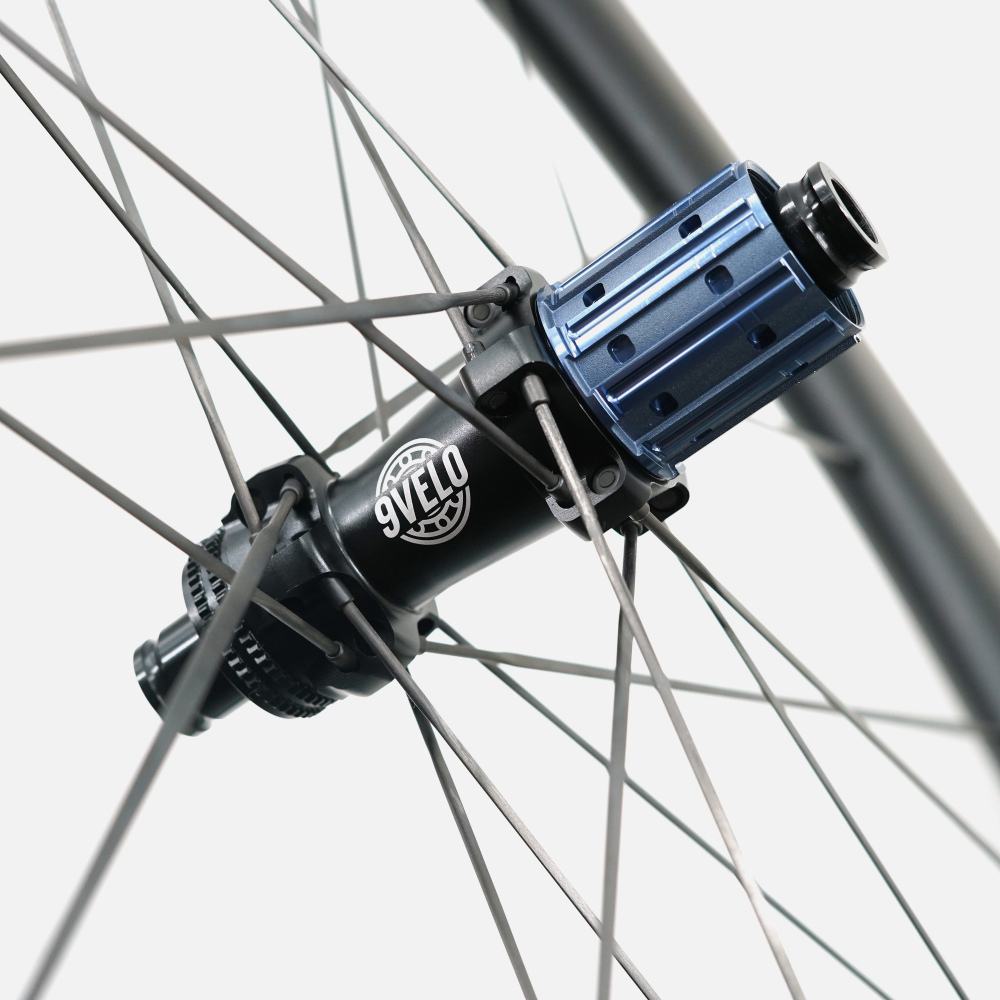

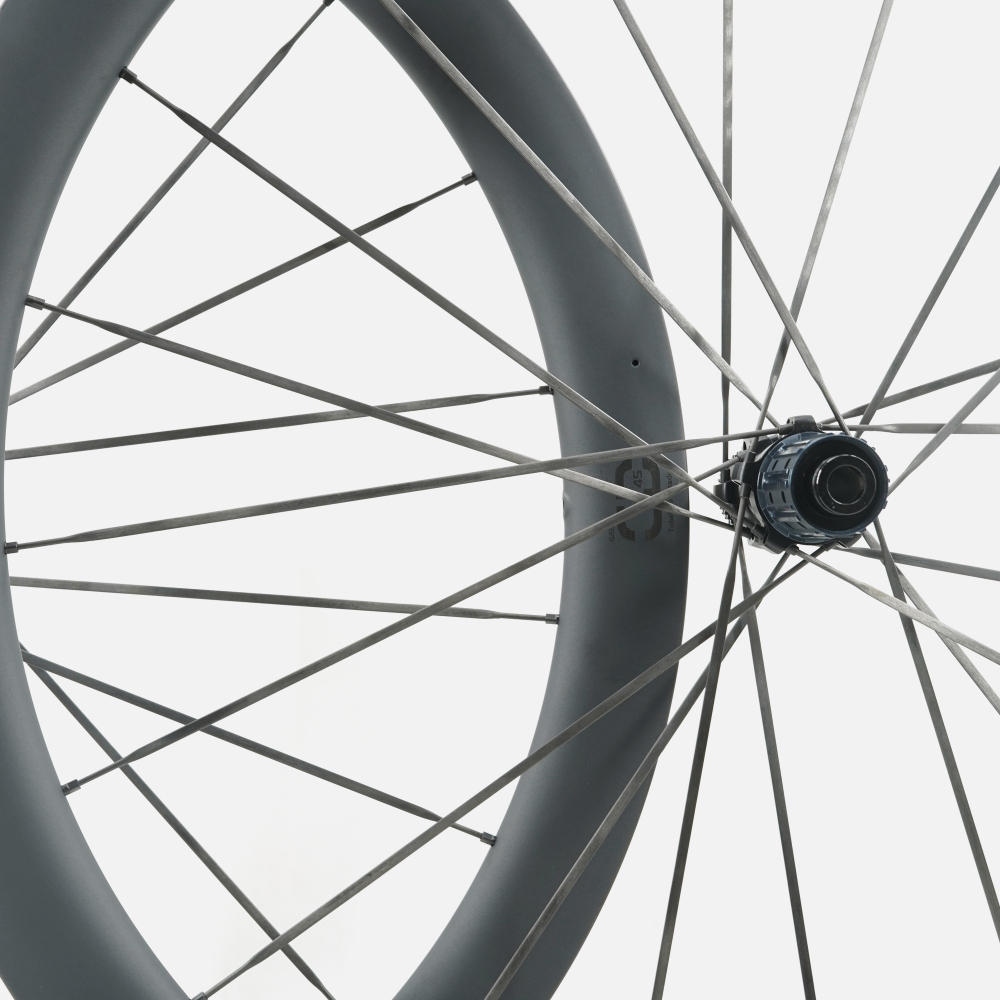

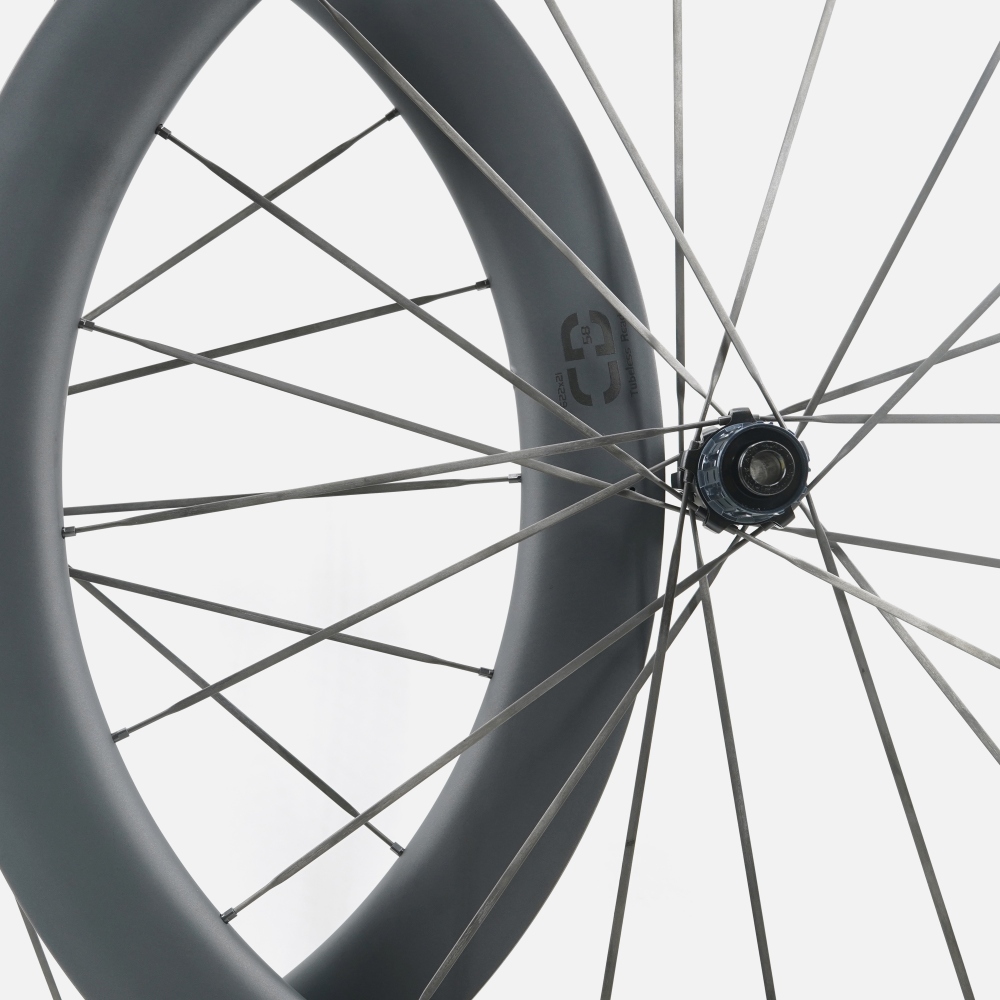

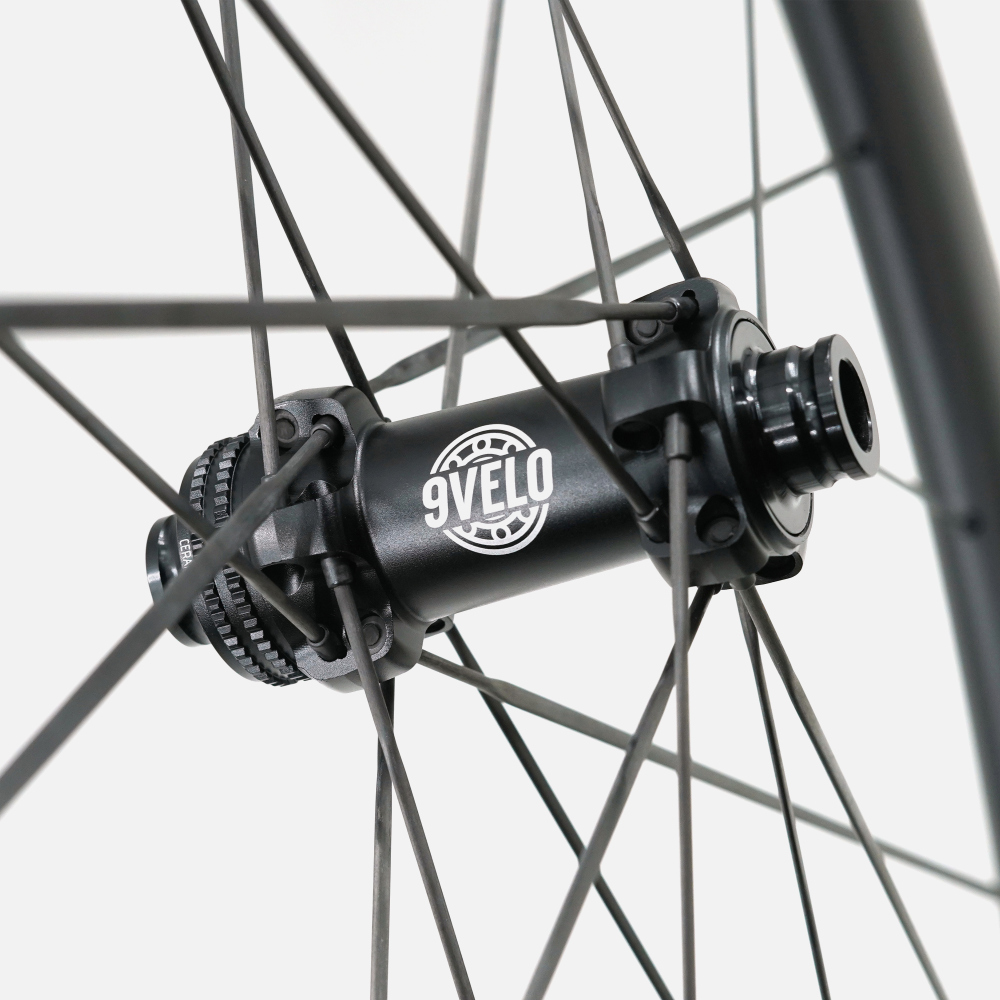

    HUB

    • Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration in the race and riding engaging various speeds and technical cornering.
    • High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
    • Lightweight freehub body equipped.
    • Designed with user-friendly maintenance in mind. the hubs require no specialized tools for servicing. This makes upkeep simple and straightforward, allowing you to keep your wheelset in top condition with minimal effort. The easy-to-service design also ensures that you can perform routine maintenance and repairs quickly, minimizing downtime and keeping you on the road.
    • Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.

    SPOKE & NIPPLE

    • Bladed aero carbon spokes save watts for ambitious riders like you.
    • Carbon fiber's high tensile strength ensures that the spokes can withstand significant stress and impact without compromising performance. This material choice makes CD wheelset suitable for the most demanding racing conditions, from aggressive sprints to rolling terrain.
    • With stiffer and lighter carbon spokes, CD Series wheelsets can reduce the spoke hole count, offering outstanding stiffness while making no compromise on the weight.

    SPECIFICATIONS
    Carbon Spoke Road Disc CD2.0 Series (Model Year 2024)
    Model CD45 2.0 CD58 2.0
    Wheel Type 700C Ultralight Carbon Spoke Wheelset
    Brake Type Disc Brake
    Tire Compatibility Tubeless/Clincher Compatible
    Rim Type Hooked

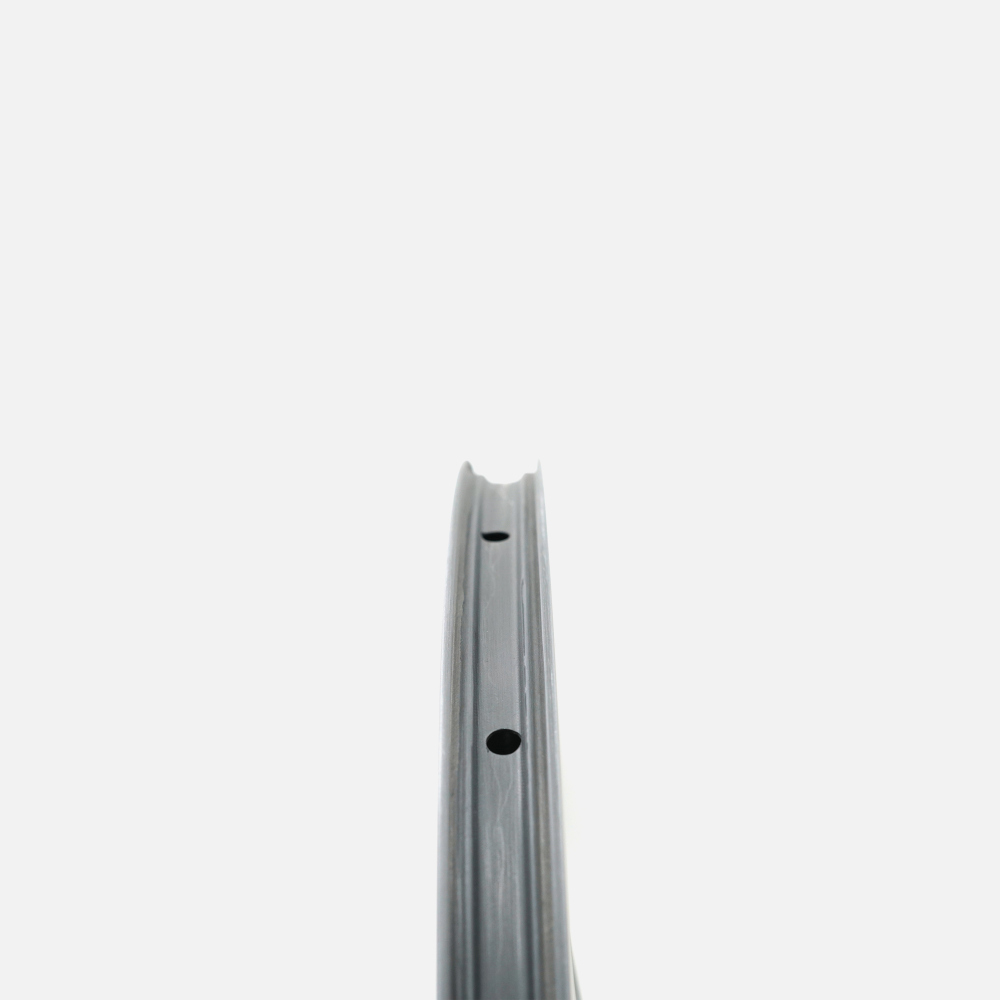

    Rim Bed Holes Drilled
    Rim Finish UD Matte
    Rim Decals Gray Logo
    Rim Outer Width 28.3mm 28.7mm
    Rim Inner Width 21mm
    Rim Depth 45mm 58mm
    Tire Size Range 700x25c - 700x47c
    Spoke Hole Count 20H/20H
    Spoke Carbon Spoke, 1:1 pattern
    Nipple Alloy
    Hub 9Velo T17 Lightweight Carbon-Spoke Hub, Straight Pull (PG Ratchet System, 36 Teeth), Center Lock, 12*100/12*142
    Freehub Shimano Road/Sram XDR/Campagnolo N3W
    Bearing Steel bearings, Front: 2*6803, Rear: 1*15267, 3*6802
    System Weight Limit 120kg/265lbs
    Weight (Front + Rear)* 1220g* 1343g*
    *Weighted with Shimano Freehub, tubeless tape weight not included, ±30g
    *Specs are subject to change without notice.

    Rim Profile



    IN THE BOX

    • Wheelset
    • Tubeless tape:pre-installed
    • Tubeless valves
    • Spare spokes
    • Spare nipples



    WHEEL CARE TIPS

    Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.
    NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.


    LIMITED 2-YEAR WARRANTY


    At 9Velo we are proud to have the leading quality control process in the industry. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.

    When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, the shipping fee is borne by the customer.



    LIFETIME REPAIR SUPPORT


    We provide lifetime warranty service with some extra charge based on the different cases.



    EXCEPTIONS TO THE 2-YEAR WARRANTY


    The above warranty, or any implied warranty, does not cover:
    。Normal wear and tear on parts.
    。Consumable components including bearings, spokes, nipples, brake pads and brake track.
    。Damage while using non-approved brake pads or tires on your product.
    。Not the original owner of the wheelset.
    。Modifications of the product from its original condition.
    。Malicious damage and inappropriate usage.



    WARRANTY PROCEDURE


    If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
    。Stop using and riding on it immediately.
    。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
    。We will reply to you and progress as soon as possible.



    RETURN POLICY


    Return policy for the non-quality-related issues:
    。If there are no quality issues with the product, the customer is responsible for both the return shipping fee and any import tax incurred.
    。Considering the high expense of international shipping, we kindly recommend that customers carefully review the product details and specifications before payment to avoid unnecessary returns.

    Return policy for quality-related issues:
    。In the event of quality problems, please refer to the warranty policy above.
    。We are committed to providing excellent customer service and will address any quality-related issues promptly.


    CRASH REPLACEMENT PROGRAM


    We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.

    All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.
