Home > Rim Brake > Road Rim Brake RVL Series 20H/24H

1/1

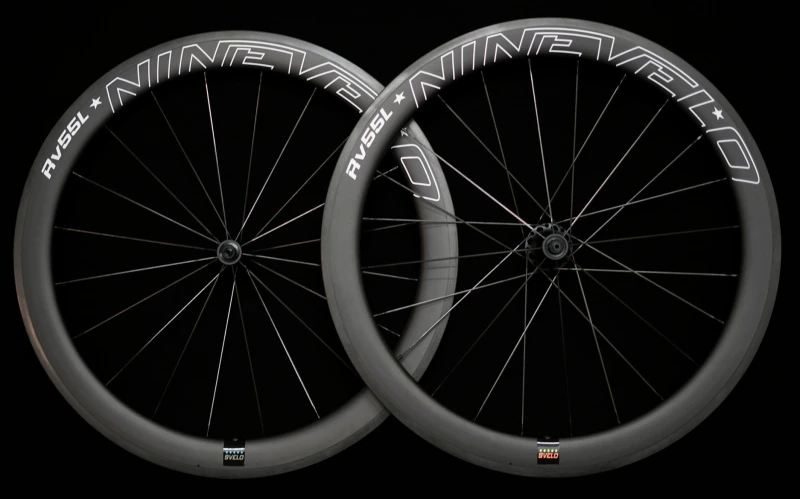

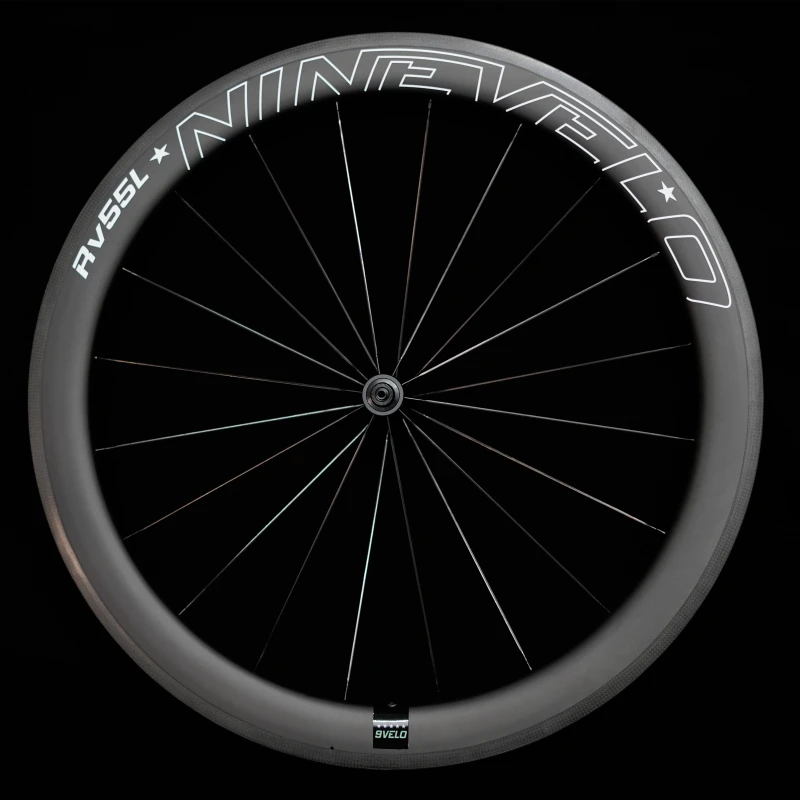

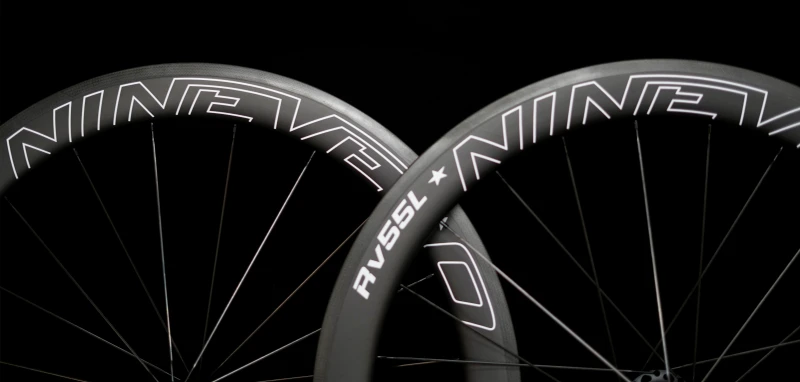

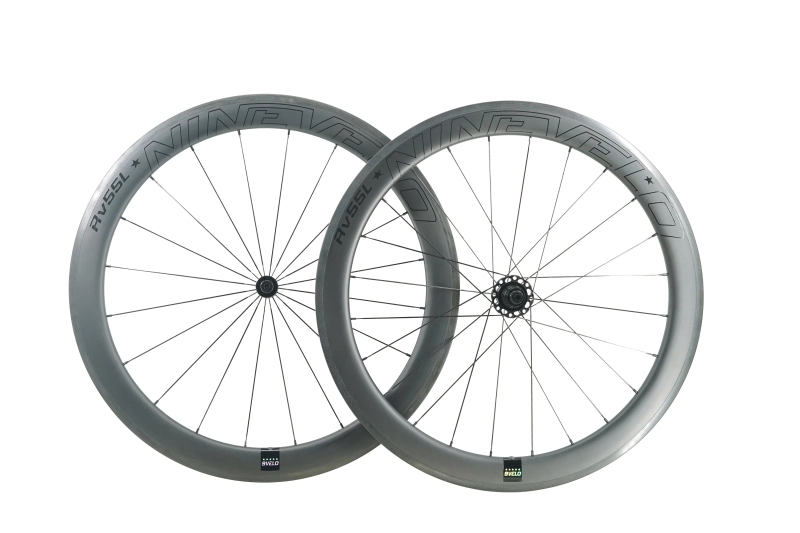

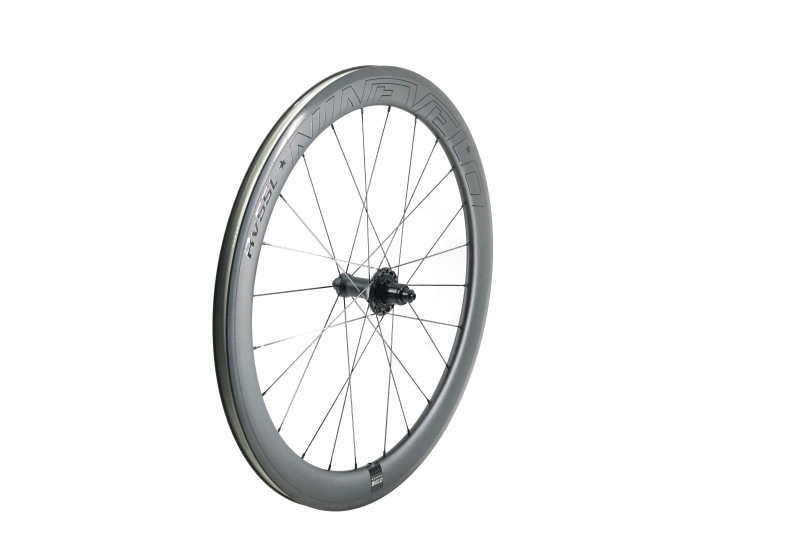

Road Rim Brake RVL Series 20H/24H

Name: Road Rim Brake RVL Series 20H/24H
Brand: 9VELO On-line Shop
SKU: RVL
Price: 819 USD
Availability: OutOfStock

"Lightweight Meets Aero"

0.0 （0 Reviews）

$819.00 ~~$879.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (2)

1/1

Description
Maintenance Notes
Warranty

FEATURES

The carbon layup with high-level precision makes the extraordinary stiffness-to-weight ratio, ensuring your smooth riding in all road conditions, climbs and flats.
Balanced lacing and even spoke tension offer a stiff and efficient wheel for a smooth riding experience.
Well-recognized Sapim CX-Ray spokes offer a combination of strength and flexibility, contributing to the overall stiffness of the wheel.
Proved U-shape wheel profile gives you the aero benefits.
Hubs with excellent geometry build the whole wheels even stiffer.
Combined with the NineVelo-specific brake pad, the brake track can perform brakings composedly and effortlessly.

SPECIFICATIONS

ROAD RIM BRAKE RVL SERIES
Model	RV40L	RV55L
Wheel Type	700C Lightweight Wheelset
Brake Type	Rim Brake
Tire Compatibility	Tubeless Compatible
Rim Finish	UD Matte
Rim Depth	40mm	55mm
Rim Outer Width	26mm
Rim Inner Width	19mm
Tire Size Range Compatibility	700×23c - 700×45c
Spoke Hole Count	20H/24H
Spoke	Sapim CX-Ray
Spoke Pattern	Radial front, 2X rear
Nipple	Sapim SILS
Hub	V280 (4-Pawl System) Straight Pull, 9100/10130
Bearing	Steel bearings, front: 68032, rear: 68033, 6903
Freehub	Shimano/Sram XDR
Weight (Pair)*	1332g*	1452g*
Rider Weight Limit	120kg/265lbs
Warranty	2 Year Warranty

*±30g, tubeless tape weight not included

RIM PROFILE

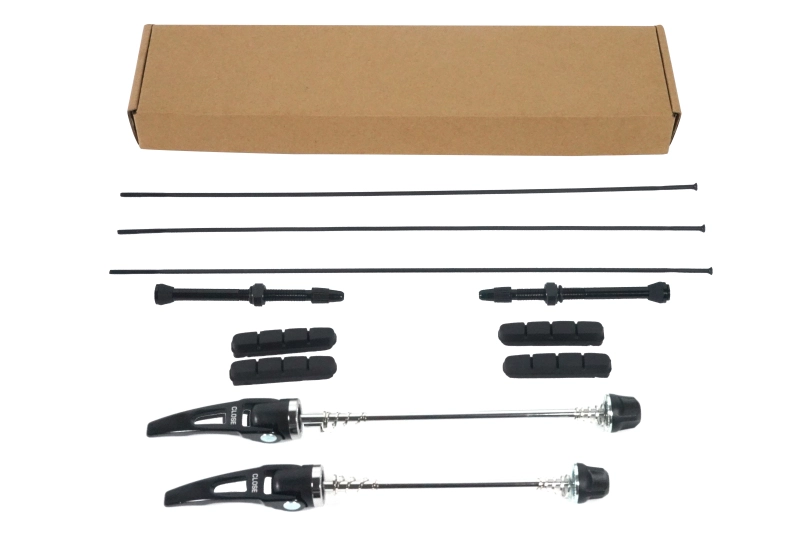

WHAT IS INCLUDED IN THE BOX

Tubeless tape: pre-installed
Tubeless valves
Spare spokes
Spare nipples
Braking pads
Quick-release skewer set

WHEEL CARE TIPS

Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.

NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.

LIMITED 2-YEAR WARRANTY

At 9Velo we are proud to have the leading quality control process in the industry. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.

When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, the shipping fee is borne by the customer.

LIFETIME REPAIR SUPPORT

We provide lifetime warranty service with some extra charge based on the different cases.

EXCEPTIONS TO THE 2-YEAR WARRANTY

The above warranty, or any implied warranty, does not cover:
。Normal wear and tear on parts.
。Consumable components including bearings, spokes, nipples, brake pads and brake track.
。Damage while using non-approved brake pads or tires on your product.
。Not the original owner of the wheelset.
。Modifications of the product from its original condition.
。Malicious damage and inappropriate usage.

WARRANTY PROCEDURE

If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
。Stop using and riding on it immediately.
。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
。We will reply to you and progress as soon as possible.

RETURN POLICY

Return policy for the non-quality-related issues:
。If there are no quality issues with the product, the customer is responsible for both the return shipping fee and any import tax incurred.
。Considering the high expense of international shipping, we kindly recommend that customers carefully review the product details and specifications before payment to avoid unnecessary returns.

Return policy for quality-related issues:
。In the event of quality problems, please refer to the warranty policy above.
。We are committed to providing excellent customer service and will address any quality-related issues promptly.

ORDER CANCELLATION POLICY

Orders typically take between 3days to 4 weeks to process before shipping out.
Cancellation policy is:
。Cancellations Before Shipping: Orders can be cancelled if they have not been shipped. Please note that a transaction fee from PayPal will be incurred, which will be borne by the buyer.
。After Shipping or Custom Orders: Orders cannot be canceled if they have already been shipped or if there are customized wheels.

We kindly advise making a definitive decision before purchasing to avoid any inconvenience.

CRASH REPLACEMENT PROGRAM

We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.

All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.
